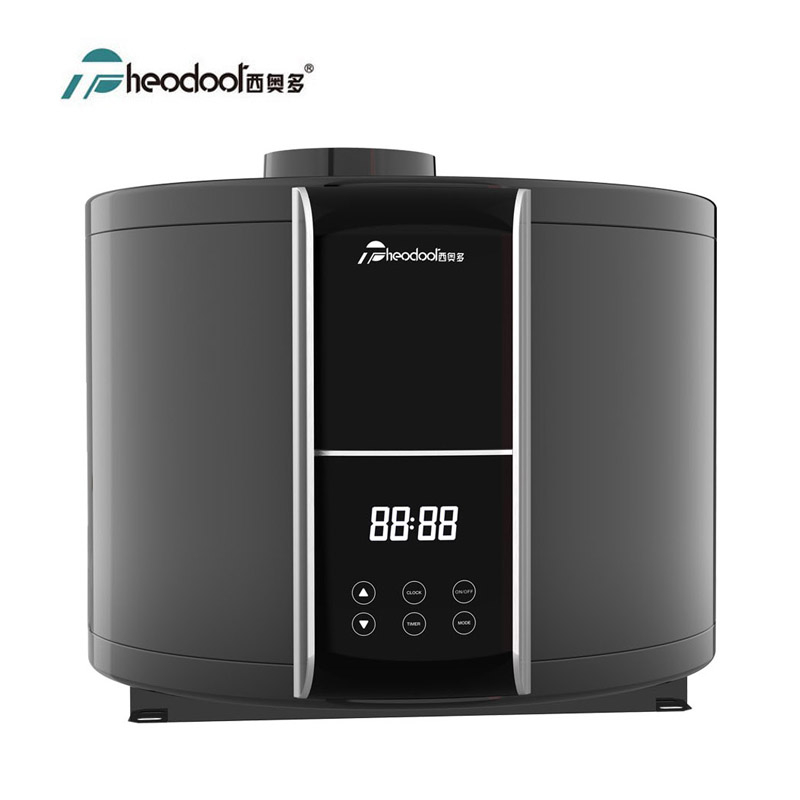

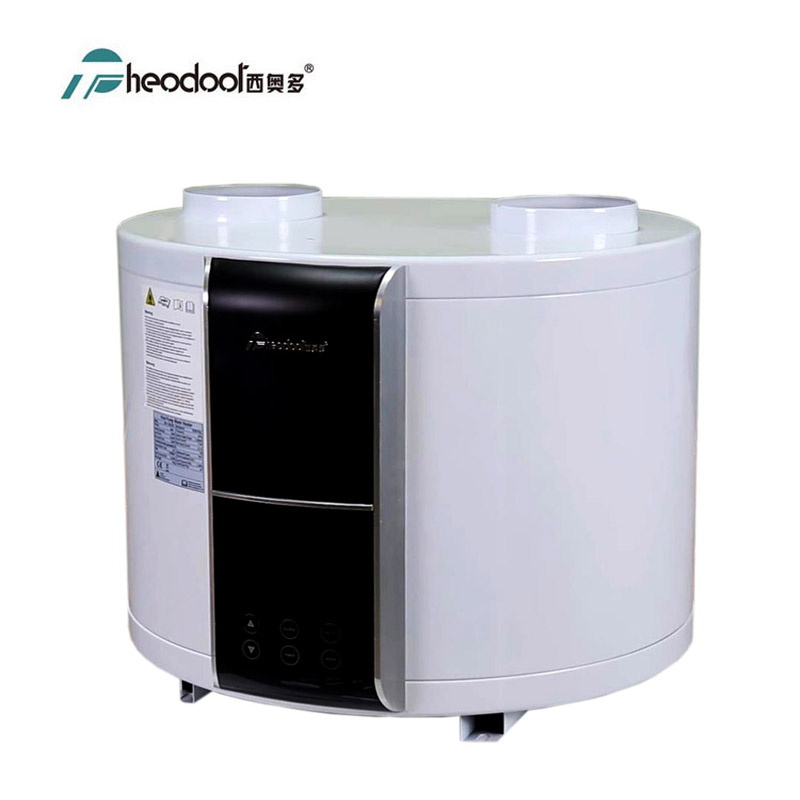

R290 Heat Pump Water Heater unit (New top kit)
Feature:
| Model | RS-3.6GX/B | |
| Rated Heating Capacity | 1500W | |
| Power Supply | 220V~50Hz | |
| Heating ampere | 1.7A | |
| Compressor | Highly | |
| Refrigerant | R290 /750g | |
| Operation condition | -7-43℃ | |
| Output water temperature | 55 ℃ | |
| Hot water supply capacity | 32.5 L/h | |
| Noise (dB) | 48dB | |
| Tank material | Steel or Stainless steel 304 | |
| Water connection | 3/4'' | |
| Fan -air duct size | ∮150mm | |
| Air pressure | 150Pa | |
| Air flow | 450m3/h | |
| Net weight | 42kgs | |
| Dimension | ∮600x495mm | |
* Circulation pump is required if the water pressure is lower (<0.15Mpa).
Easy Install
Theodoor heat pump work principle ：
The system follows carnot cycle principole. Driven by Electricity , its working substance absorbs the latent heat in the air or other low-temperature heat source , and waste heat let out of living or industry , compresses it to heat by compressor , exchange , exchange heat with water to higher the water temperature , 1 electricity can prduce heat equal to 4 electricity .it’s a new water heating equipment .
Choose which sizes of water tank is related to the number of people using hot water, the number of bathrooms, whether there are bathtub, kitchens and other hot water consumption and so on.
Air source heat pump is not direct heating by the heating element, but with a small amount of electric driving the main unit's compressor to work, the low temperature air is compressed to high temperature air , through the pipeline circulation system to heat the water, the power consumption is only 1/4 of the traelectric water heater.
