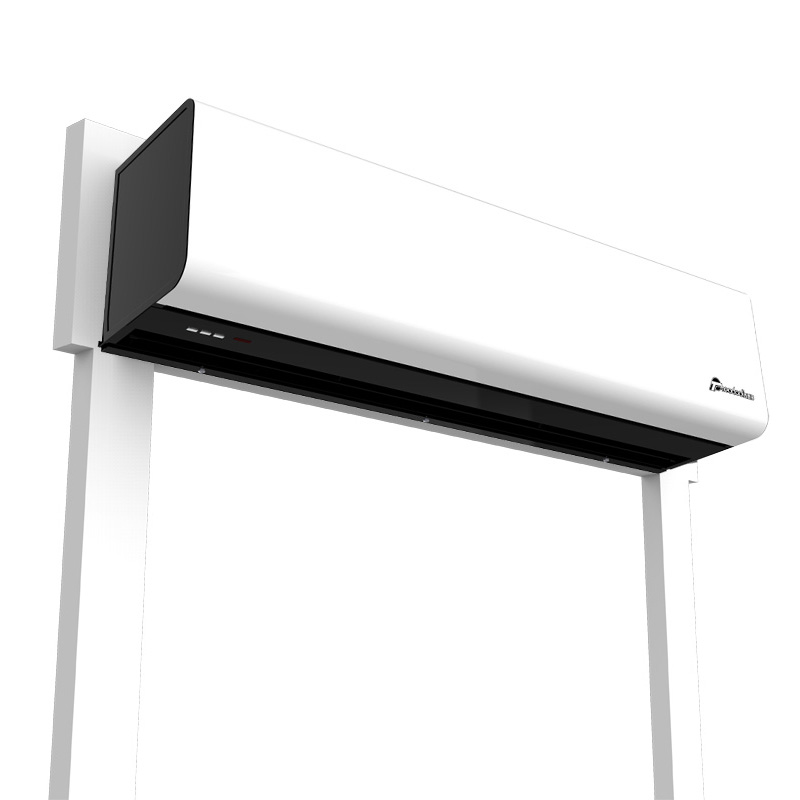

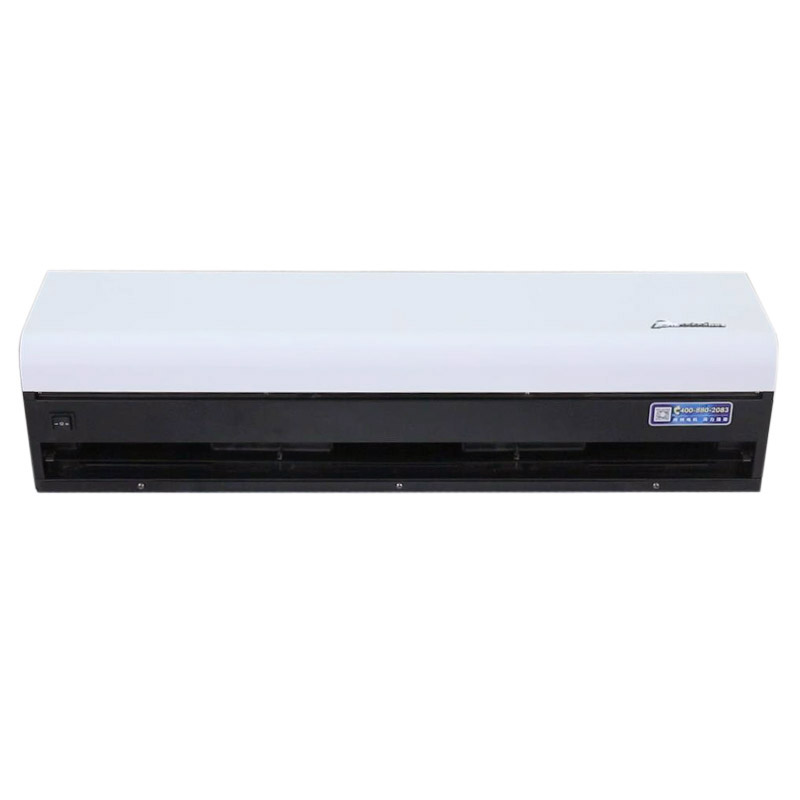

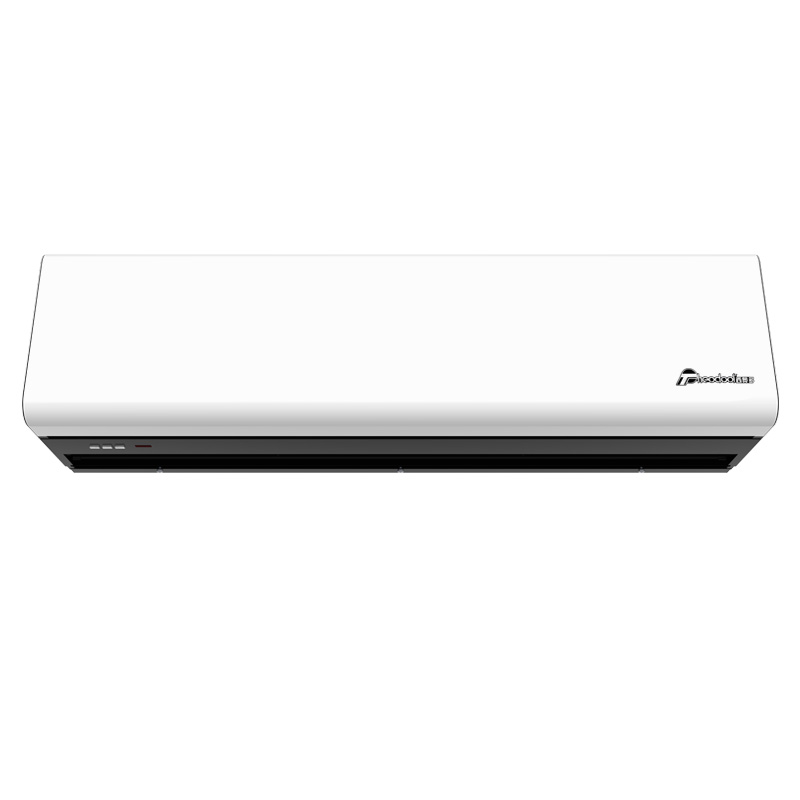

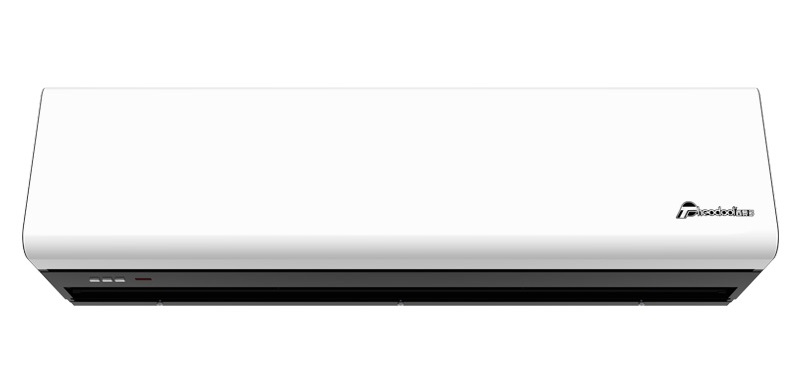

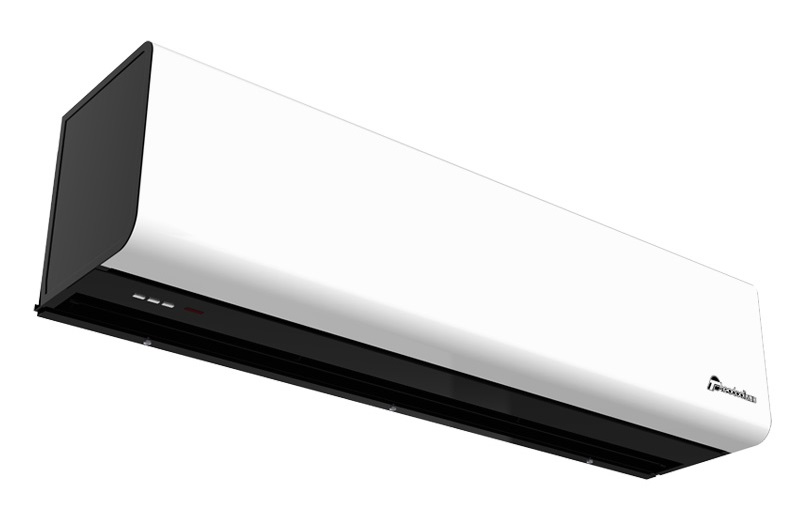

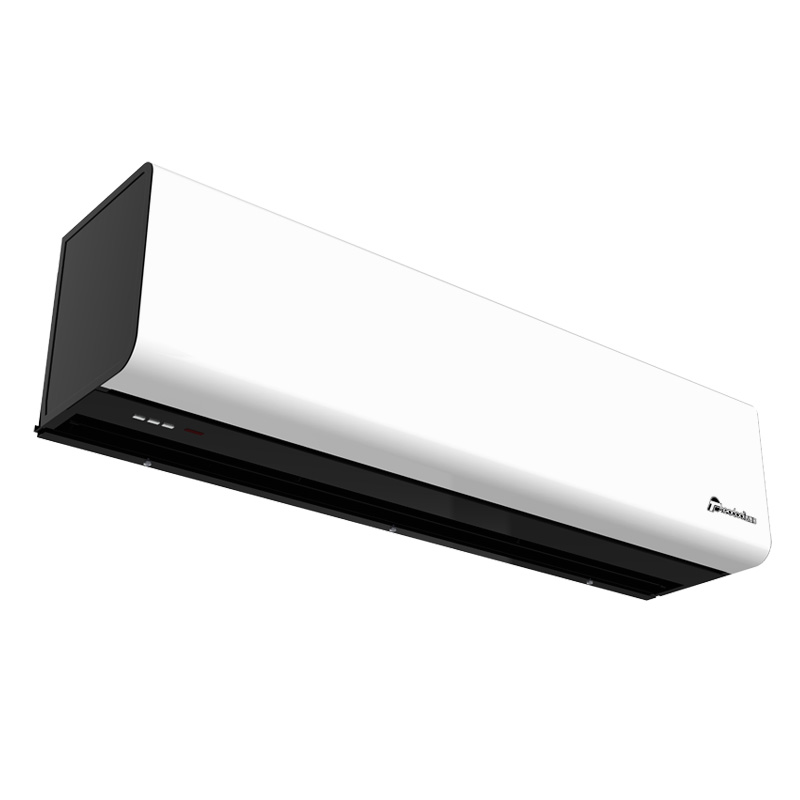

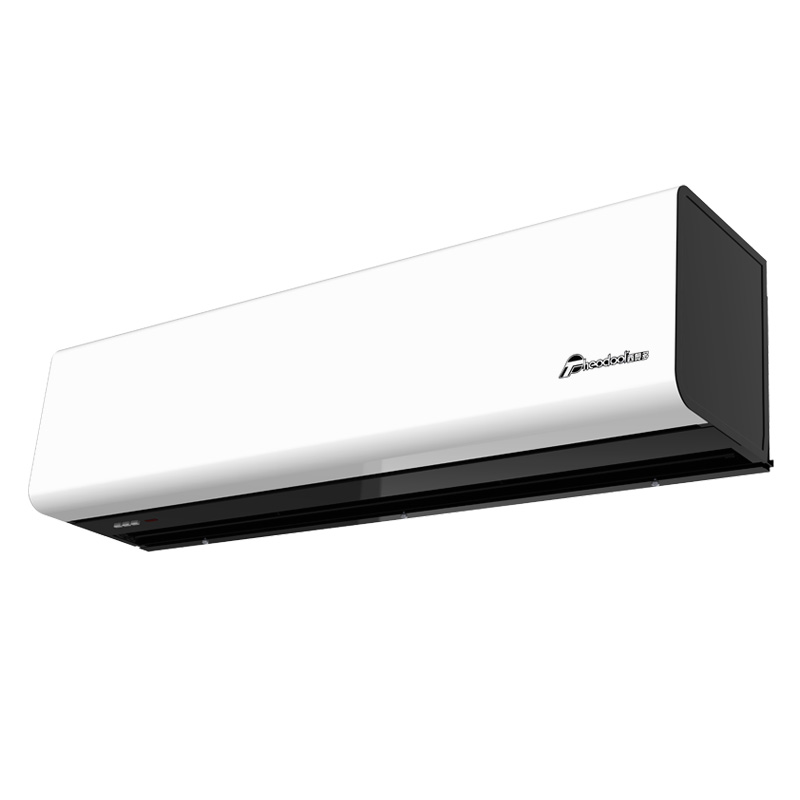

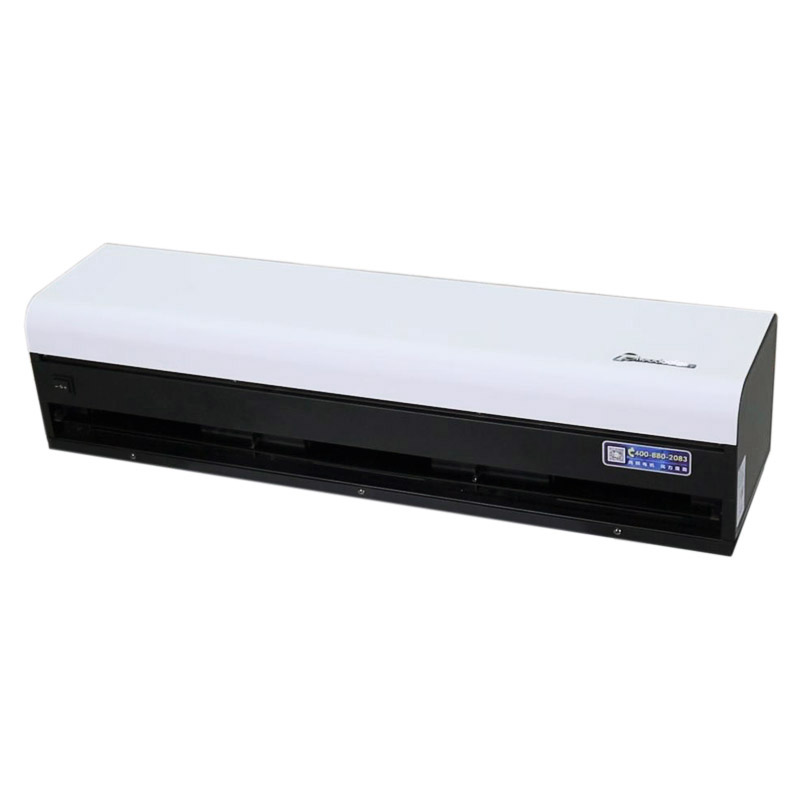

S3 New Air Curtain is suitable for high grade restaurants, hotels, clubs, shops and commercial buildings. Apply centrifugal fans with a high-performance pure copper motor to maximize the effect.
▍Product Advantage
Theodoor New S3 Door Air Curtain 0.9m Width Door Gate With R/C
*Fashion simple design, flat cover with durable structure;
*Adopting high-performance motor, safe and reliable;
*Centrifugal air flow fan with stronger air velocity;
*Adopting updated remote control with high and low speeds operation;

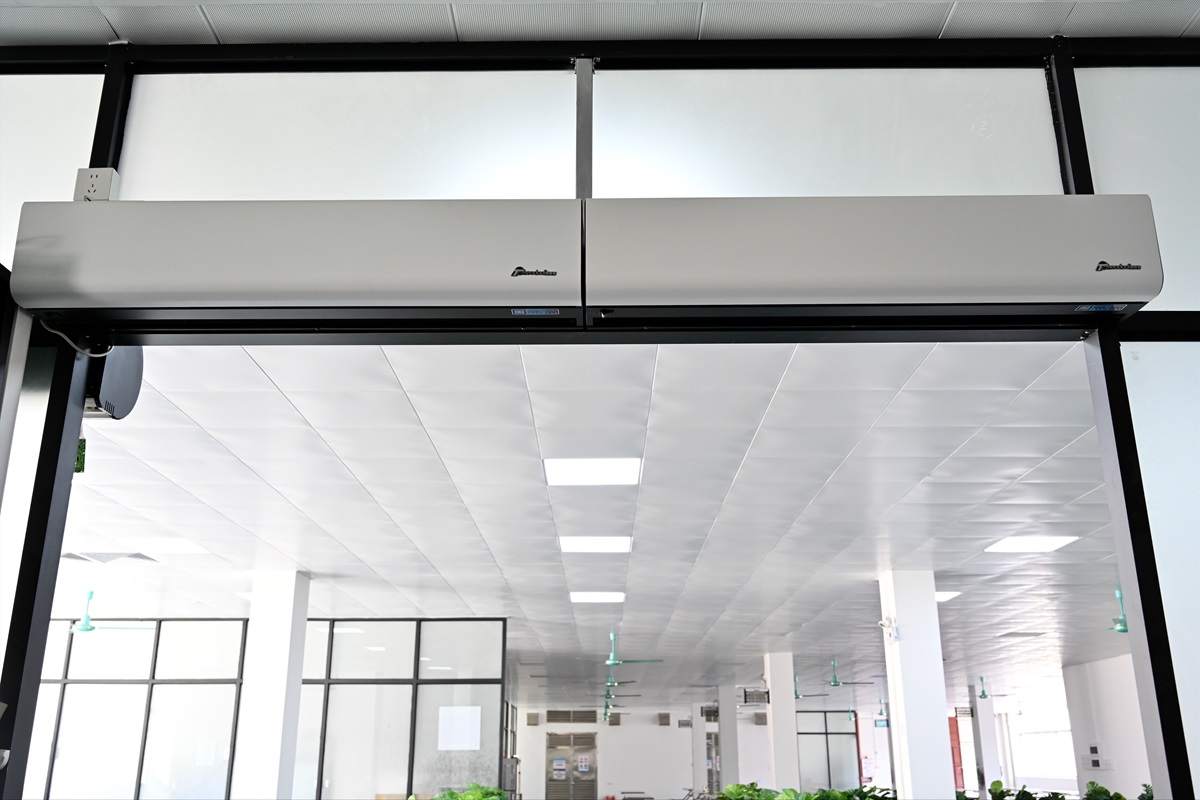

*Suitable for installation in hotels, supermarket chains, large stadiums, restaurants, airport terminals and other places entrance;
▍Technical Parameters
Model | Voltage V/ HZ | Input power (W) | Air Volume (m3/h) | Air Speed (m/s) | Noise (dB) | Net W. (Kg) | Size (mm) | ||||
Hi | Low | Hi | Low | Hi | Low | Hi | Lo | ||||
| FM-3509S3/Y | 220~ 240 /50
| 230 | 200 | 1100 | 900 | 16 | 13 | <52 | <49 | 11 | 920 x212 x225 |
FM-3510S3/Y | 250 | 220 | 1200 | 1000 | <52 | <49 | 12 | 1000 x212 x225 | |||
FM-3512S3/Y | 290 | 260 | 1500 | 1200 | <53 | <50 | 13 | 1200 x212 x225 | |||
FM-3515S3/Y | 380 | 350 | 1900 | 1500 | <55 | <53 | 17.5 | 1530 x212 x225 | |||
FM-3518S3/Y | 450 | 420 | 2280 | 1800 | <57 | <54 | 21 | 1800 x212 x225 | |||
FM-3520S3/Y | 470 | 440 | 2520 | 2100 | <58 | <56 | 24.5 | 2000 x212 x225 | |||
Making life more comfortable inside
Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning is maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.
Prevent the loss of cool or warm air whilst economizing on electricity.
Efficient dust and insect-proofing..
Protect against smoke and noxious fumes.
Accelerate air circulation
OPTIONAL FUNCTIONS OF THEODOOR AIR CURTAIN:
Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.
The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.
3. AUTO ON/OFF DOOR SWITCH
Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.
Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and energy-saving.
