Suitable for chain stores, restaurants, bubble tea shops, hotels, supermarkets, and other venues.

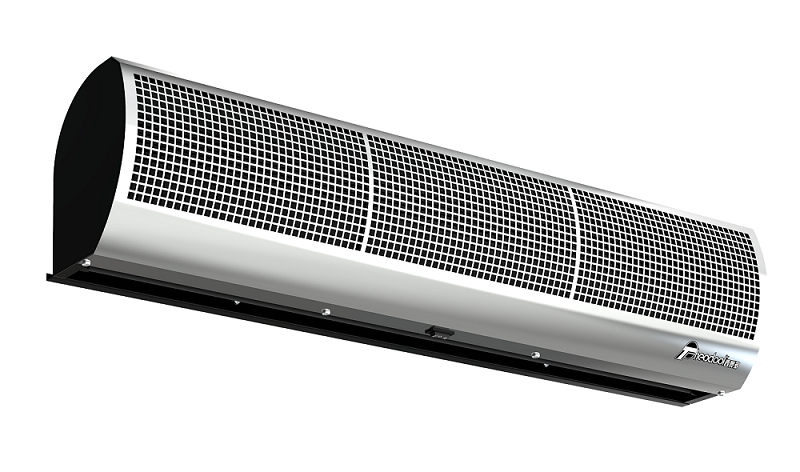

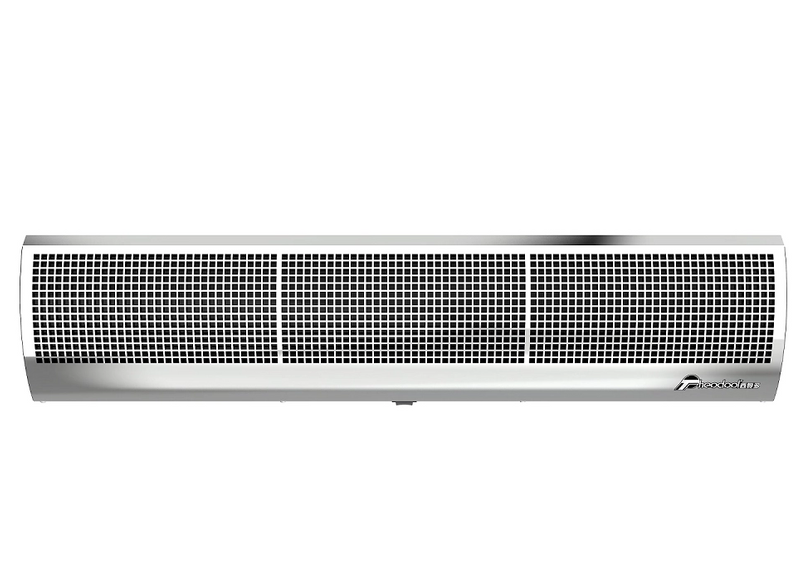

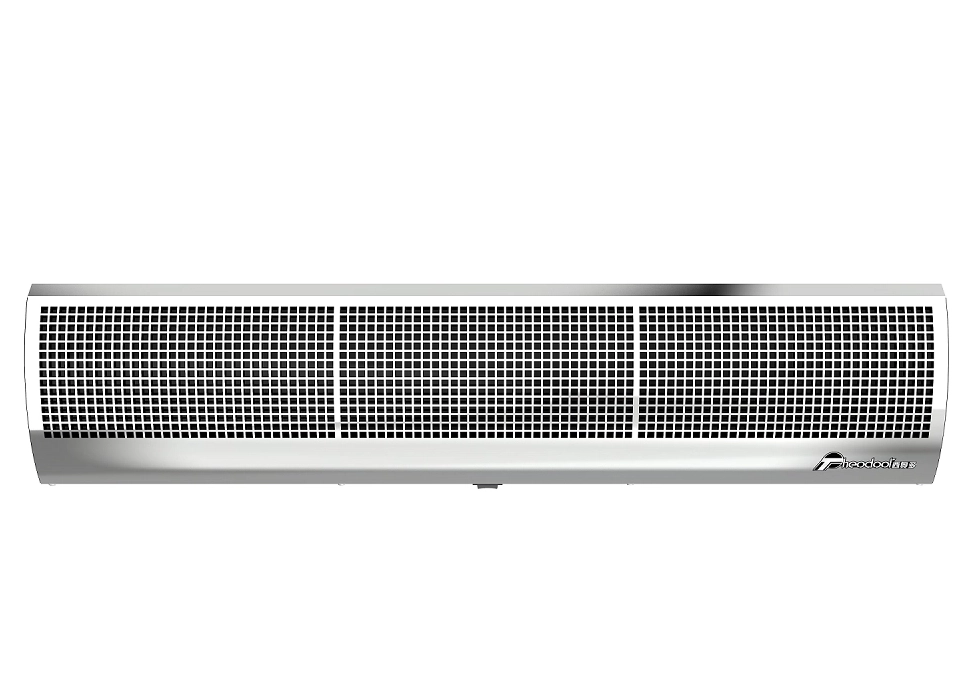

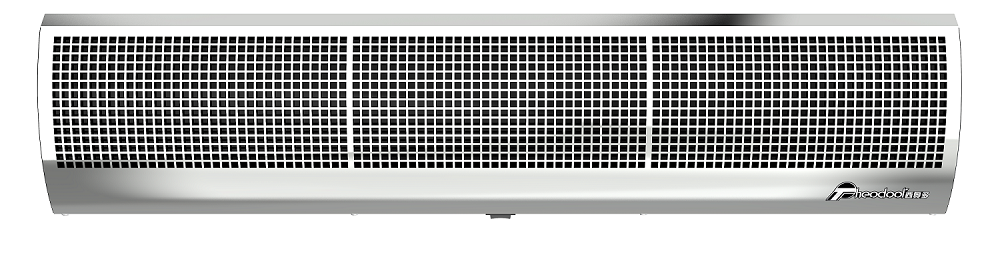

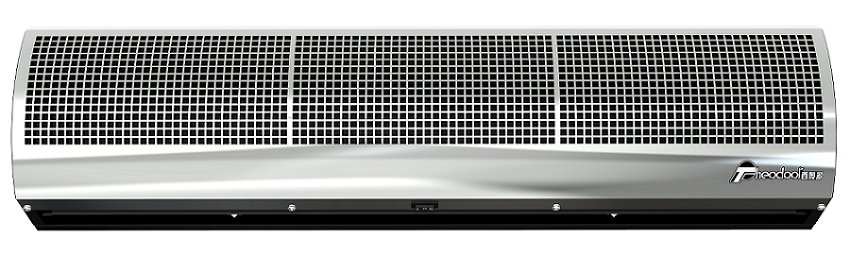

Durable and Sturdy

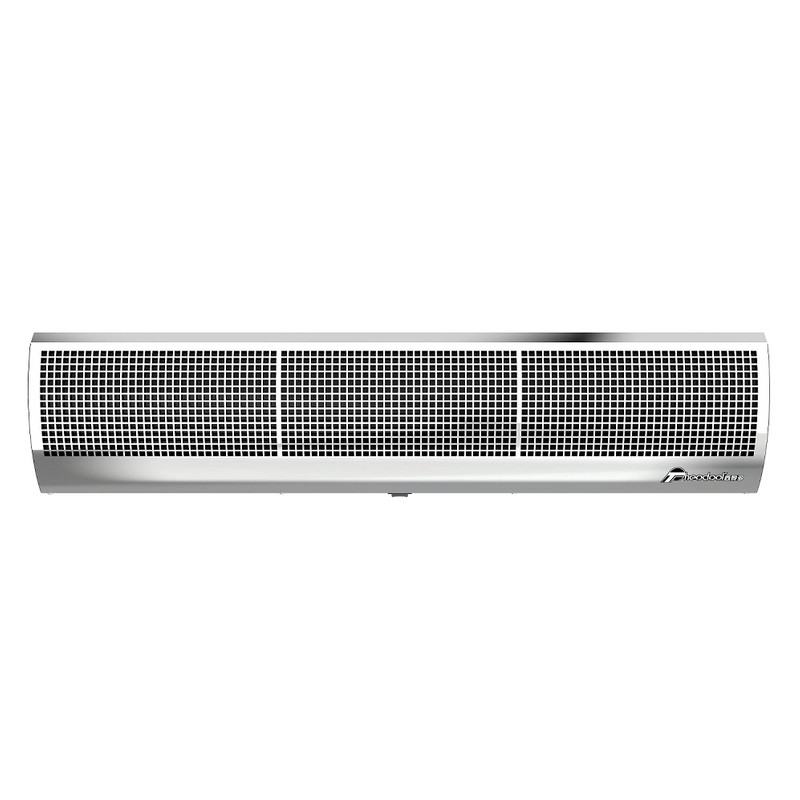

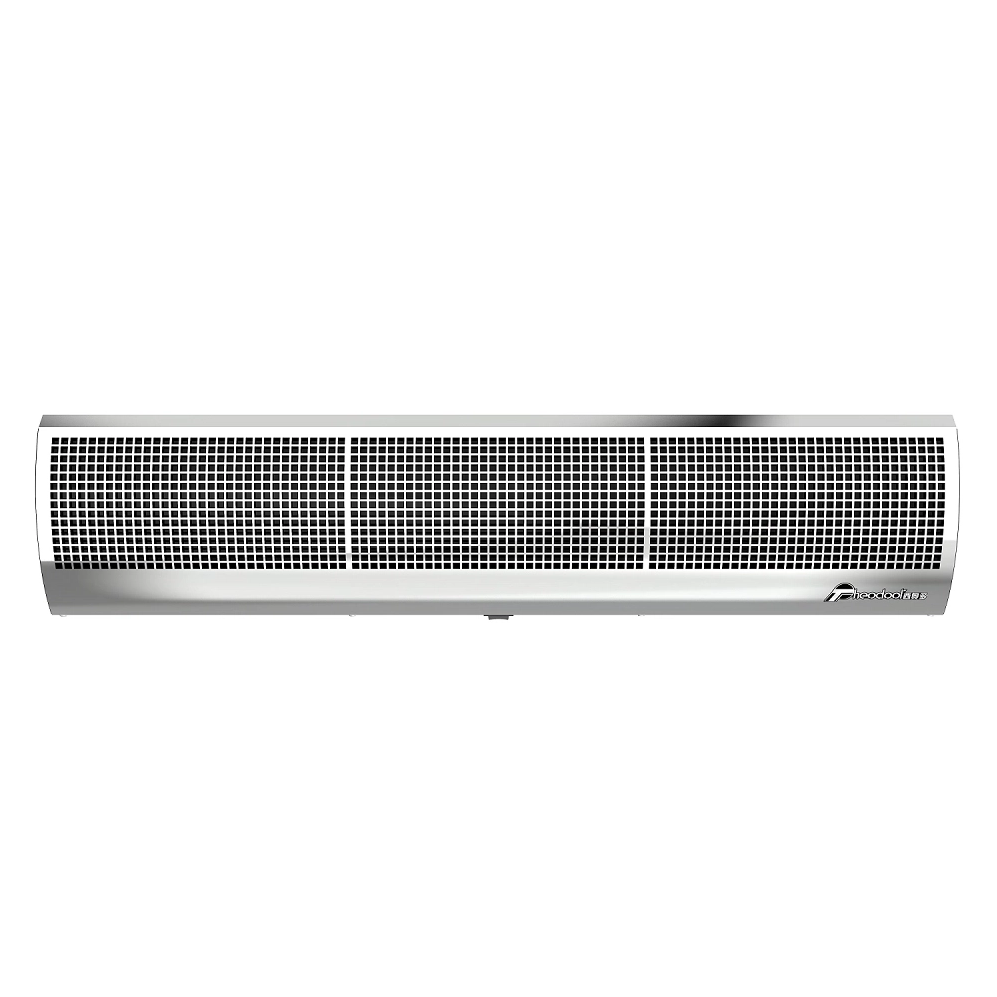

Constructed with 304 stainless steel panels, offering a premium texture, rust resistance, and deformation-free performance. Grease and dust can be wiped clean effortlessly, ensuring easy installation and maintenance.
Powerful Airflow
Equipped with an original high-speed pure copper motor, tested to operate without failure for 8,000 hours. Features a dynamically balanced fan wheel design with durable ball bearings for stable performance, energy efficiency, and power savings. Delivers even and steady airflow with high air volume and low noise.
Easy Operation
Incorporates a unique air deflector design for adjustable wind direction. Optional with button switch or remote control with high and low speed control.
Model | Size (mm) | Voltage (V~) | Frequency (Hz) | Power (W) | Air velocity (m/s) | Air Volume (m³） | Noise (dB) | Net weight (Kg) | Unit size (mm) |
FM-3006F | 600 | 220 | 50 | 70 | 10 | 870 | 53 | 5.5 | 600x200x156 |
FM-3009F | 900 | 220 | 50 | 100 | 10 | 1300 | 53 | 7 | 900x200x156 |
FM-3010F | 1000 | 220 | 50 | 130 | 10 | 1400 | 54 | 7.5 | 1000x200x156 |
FM-3012F | 1200 | 220 | 50 | 140 | 10 | 1800 | 54 | 8.2 | 1200x200x156 |
FM-3015F | 1500 | 220 | 50 | 180 | 10 | 2300 | 55 | 9.5 | 1500x200x156 |
FM-3018F | 1800 | 220 | 50 | 200 | 10 | 2800 | 56 | 11 | 1800x200x156 |
FM-3020F | 2000 | 220 | 50 | 230 | 10 | 3200 | 57 | 12.5 | 2000x200x156 |
Making life more comfortable inside
The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.
Prevent the loss of cool or warm air whilst economizing on electricity.
Efficient dust and insect-proofing..
Protect against smoke and noxious fumes.
Accelerate air circulation
Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.
Dust-proof, insect prevention
Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.
Isolate the smell
Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.
Energy saving
The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.
Comfortable heating
Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.
Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.
The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.
Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.
Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and energy-saving.
