For facility managers, the choice of an air curtain can feel like a high-stakes decision. Select the wrong one, and you face persistent energy leakage, ineffective insect control, and constant noise complaints from staff and customers. It’s a common dilemma, but the solution lies in understanding the core technology split. The market is primarily divided between two fan systems: Cross Flow, also known as tangential, and Centrifugal, or radial. Each is engineered for fundamentally different environments and performance demands. This guide provides a clear technical and commercial evaluation, helping you select the optimal air barrier based on critical factors like mounting height, external wind load, and the unique needs of your facility.
Cross Flow Air Curtains are the standard for commercial/retail environments (up to 3.5m) due to their uniform, quiet, laminar airflow.
Centrifugal Air Curtains are engineered for industrial/high-traffic openings (4m–8m) where high static pressure is required to overcome external wind loads.
Decision Drivers: Mounting height, noise tolerance, and "Air Barrier Integrity" (uniformity vs. raw power).
ROI Factor: Modern EC (Electronically Commutated) motors can reduce operational costs by up to 67% regardless of fan type.
The fundamental difference between a Cross Flow and a Centrifugal air curtain lies in how they move air. This mechanical distinction dictates their performance, efficiency, and suitability for specific applications. Understanding these principles is the first step toward making an informed choice.

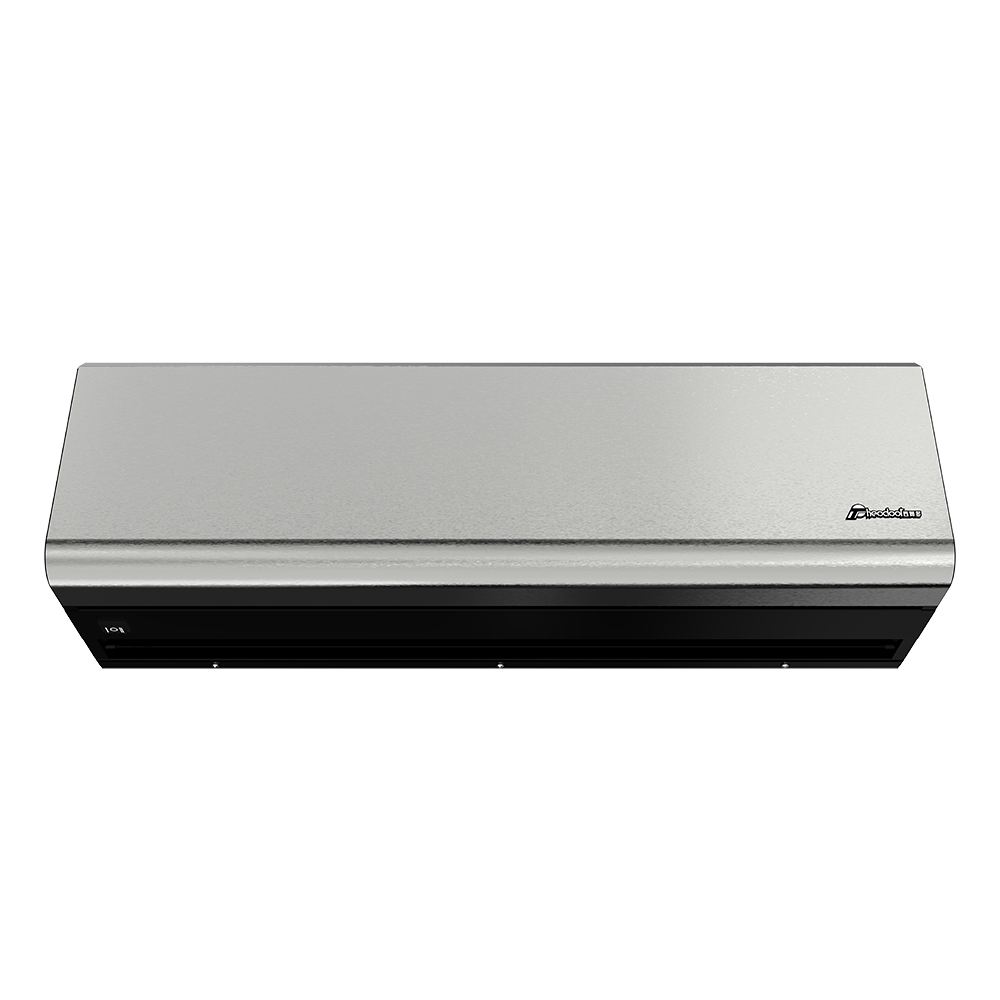

A Cross Flow Air Curtain uses a long, cylindrical impeller that resembles a hamster wheel. The airflow pattern is unique and highly efficient for creating a uniform barrier. Air enters through the front or top of the unit and passes through the rotating blades of the tangential impeller. It then travels across the interior of the impeller and is pushed out through the blades a second time, exiting in a wide, even "sheet."
This design has a key advantage known as the "Vortex Tongue" effect. A specialized piece of internal geometry near the discharge nozzle helps stabilize the airflow. It minimizes turbulence and creates a smooth, laminar stream. This results in an exceptionally consistent air barrier from one end of the unit to the other, which is crucial for maintaining indoor climate control.
In contrast, a Centrifugal Air Curtain operates on a radial principle. Air is drawn into the side of the fan housing, striking the center of the impeller. The rotating blades accelerate this air, slinging it outward at a 90-degree angle due to centrifugal force. This high-velocity air is then forced into a chamber called a plenum, which is essentially a static pressure box. The plenum builds up pressure before releasing the air through the discharge nozzle.
This mechanism gives centrifugal units their signature static pressure advantage. By converting kinetic energy (velocity) into potential energy (pressure) within the plenum, these units can "push" air with much greater force over longer distances. This makes them ideal for tall doorways and environments with significant external wind.
While powerful, the centrifugal design can have a potential drawback: inconsistent coverage. The plenum box must distribute the air generated by one or more internal fans evenly across the entire length of the nozzle. If the plenum is poorly designed or the fans are spaced too far apart, it can create "weak zones" or "dead spots" in the air barrier. This is where air velocity drops significantly, compromising the integrity of the seal. In contrast, the continuous impeller in a cross-flow design ensures edge-to-edge consistency, providing a virtually seamless curtain of air.
When evaluating an air curtain, it’s not just about raw power. The quality and consistency of the airflow are just as important. Key performance indicators like air barrier integrity, wind resistance, and ground velocity determine whether the unit will succeed or fail in its primary mission.
Air barrier integrity refers to the uniformity of the air velocity profile across the entire length of the discharge nozzle. This is where the two technologies show their greatest difference.
Cross Flow: Delivers near-zero velocity fluctuation. The single, long impeller provides a consistent airstream from end to end. This uniformity is perfect for delicate climate separation, preventing drafts and ensuring occupant comfort in retail or commercial settings.
Centrifugal: Can be susceptible to velocity variations. The gaps between internal fans can lead to potential dead spots if the plenum doesn't effectively equalize the pressure. For very wide doorways, this could create an entry point for dust, insects, or unconditioned air.
An air curtain must be strong enough to resist external wind and pressure differentials caused by building ventilation systems or the "Venturi Effect" in narrow city streets. Here, the power of centrifugal units shines.
Centrifugal: These units produce a high-velocity discharge, typically ranging from 12–18 m/s. This powerful jet of air is designed to penetrate high-pressure zones created by wind, ensuring the air barrier reaches the floor and effectively seals the opening.
Cross Flow: With a lower discharge velocity, generally between 8–14 m/s, these units are optimized for internal temperature retention in less demanding conditions. They excel at separating indoor climates but may struggle against persistent, strong gusts.
Regardless of the technology, the ultimate test of an Air Curtain is whether its airflow reaches the floor with enough speed to create a seal. The non-negotiable success metric for both types is achieving a minimum ground velocity of 2.0 to 3.0 m/s at floor level. Anything less means the barrier is likely to break, allowing outdoor air and contaminants to infiltrate the space. This target ensures the air stream has enough momentum to overcome the natural tendency of air to mix.
Choosing the right air curtain technology comes down to a simple matching game: align the unit's strengths with the facility's specific needs. The following matrix breaks down the ideal applications for each type.
Application Area | Recommended Technology | Key Decision Factors |
|---|---|---|
Commercial & Retail (Hotels, Boutiques, Cafes) | Cross Flow | Low noise levels, aesthetic design, uniform airflow for comfort, slim profiles. |
Industrial & Logistics (Warehouses, Loading Docks) | Centrifugal | High wind resistance, high mounting capability, raw power to seal large openings. |
Cold Storage & Freezers | Centrifugal | Maximum power to prevent temperature exchange and reduce frost buildup. |
Insect Control (Food Processing, Restaurants) | Centrifugal | Higher impact velocity is needed to physically block flying insects. |
Cleanrooms & Labs | Cross Flow | Laminar, turbulence-free airflow is required to prevent particle contamination. |
In customer-facing environments, the user experience is paramount. This is the domain of the Cross Flow air curtain. Facility managers in hotels, boutiques, and cafes prioritize aesthetics, slim profiles, and low decibel levels. The gentle, uniform airflow prevents uncomfortable drafts while effectively maintaining the indoor temperature. The optimal mounting heights for these units are typically between 2.3m and 3.5m.
For loading docks, warehouses, and cold storage facilities, the primary goal is creating a powerful, impenetrable air wall. Here, the Centrifugal air curtain reigns supreme. The focus is on high-penetration power to block wind, dust, and pests from entering through large, frequently opened doors. These units are engineered for optimal mounting heights ranging from 4m all the way up to 8m.
Beyond the primary commercial and industrial split, certain applications have unique requirements:
Insect Control: Food processing plants and restaurants often prefer centrifugal units. The higher "impact" velocity of the air jet provides a more effective physical barrier against flying insects.
Cleanrooms: In pharmaceutical or electronics manufacturing, preventing contamination is critical. Cross-flow units are used to create a turbulence-free (laminar) air barrier that protects the sterile environment without disturbing sensitive processes.
The initial purchase price of an air curtain is only one part of the equation. A true assessment requires looking at the Total Cost of Ownership (TCO), which includes energy consumption, maintenance, and installation complexities. Understanding these factors can prevent costly long-term mistakes.
Motor technology is a major driver of operational cost. The industry has seen a significant shift from traditional AC (Alternating Current) motors to modern EC (Electronically Commutated) motors. EC motors are essentially DC motors with onboard electronics, allowing for variable speed control and significantly higher efficiency.
This upgrade can have a massive impact on the payback period of an air curtain, which can range from 1.2 to 5 years. In terms of fan type efficiency:
Centrifugal Fans: Generally achieve higher efficiency ratings, between 70% and 90%. Their design is well-suited for converting electrical energy into air pressure.
Cross Flow Fans: Have lower efficiency ratings, typically from 30% to 60%. The complex internal flow path, where air passes through the impeller twice, results in greater energy losses.
However, an EC motor can mitigate these differences, making either choice far more economical to run than older AC models.
The complexity of the fan system directly influences maintenance requirements.
Cross Flow: Maintenance is relatively simple. It involves regular cleaning of the intake grille and discharge nozzle to prevent dust buildup. A yearly check of the impeller and motor bearings is usually sufficient.
Centrifugal: The high-pressure system requires more attention, especially in dusty industrial environments. Filters and the internal plenum may need cleaning as often as every two weeks to maintain performance and prevent motor strain.
Installation is another area where the two types differ significantly.
Weight and Power: Centrifugal units are heavier and more powerful, often requiring reinforced mounting brackets and a three-phase power supply. Cross-flow units are lighter and typically run on single-phase power, simplifying installation.
Discharge Angles: Proper installation is crucial for effectiveness. To counteract external pressure and ensure the airstream reaches the floor directly below the unit, a discharge angle tilted 0–10° outward is a widely accepted best practice. This small adjustment can make a huge difference in performance.
With a clear understanding of the technology, performance, and costs, you can use this simple four-step framework to confidently shortlist the right air curtain for your needs.
Step 1: The Height Check
This is the most critical first step. Measure the height from the floor to the proposed mounting position of the air curtain. If the height is over 4 meters, your choice is almost exclusively limited to a centrifugal unit. Its power is necessary to ensure the air velocity reaches the floor.
Step 2: The Noise Budget
Consider the proximity of the unit to people. If the air curtain will be installed within 2 meters of a customer service desk, reception area, or seating, a cross-flow model is the only viable option. Its significantly lower operating noise will prevent disruptions and complaints.
Step 3: External Conditions
Assess the environmental challenges. Is your building located in a high-wind coastal area? Does the entrance face a street that creates a "wind tunnel" effect? If so, you will need the high static pressure of a centrifugal unit to maintain the integrity of the air barrier against strong, persistent wind.
Step 4: Integration
Evaluate your building's existing systems. Do you need the air curtain to activate automatically with door sensors? Should it integrate with a larger BMS (Building Management System) for centralized control? Ensure the model you choose is compatible with variable speed controllers and other automation technologies to maximize energy savings.
The debate between Cross Flow and Centrifugal air curtains is not about which is better, but which is right for the job. Your decision hinges on a fundamental trade-off: balancing the quiet, consistent "Uniformity" of a Cross Flow unit against the raw, penetrating "Strength" of a Centrifugal one. Cross Flow models protect comfort and aesthetics in commercial spaces, while Centrifugal units provide an industrial-grade barrier against harsh conditions.
Our final recommendation is to look beyond the initial price tag. Base your decision on the "Air Barrier Integrity" required for your specific doorway height and local climate. Investing in the correct technology from the start prevents years of wasted energy and operational headaches. For particularly high-stakes industrial openings with complex pressure differentials, consider consulting with a specialist who can perform a CFD (Computational Fluid Dynamics) analysis to guarantee optimal performance.
A: No, this is not recommended. The air velocity from a cross flow unit will likely dissipate before reaching the floor from that height, rendering the air barrier ineffective. A 5-meter opening requires the high static pressure and velocity of a centrifugal air curtain to create a proper seal.
A: A centrifugal air curtain is generally better for insect control. Its higher discharge velocity creates a more powerful physical barrier that is more effective at repelling flying insects. A ground velocity of at least 2.5-3.0 m/s is often cited as the target for effective pest management.
A: Generally, yes. Centrifugal fans operate at higher RPMs and move air with greater force and turbulence, which generates more noise than the smoother, laminar flow of a cross flow fan. This makes cross flow units the preferred choice for noise-sensitive commercial environments.
A: The Vortex Tongue is a critical internal component that stabilizes the airflow as it exits the impeller. By guiding the air and reducing internal turbulence, it helps create a more uniform, laminar "sheet" of air. This process improves the effectiveness of the air barrier and reduces energy-wasting chaotic airflow.
A: The Return on Investment can be rapid. In high-traffic, climate-controlled facilities like cold storage or busy warehouses, upgrading an old AC-motor unit to a new high-efficiency EC-motor model can have a payback period of under 18 months due to significant energy savings.
