Every warehouse manager faces a critical choice when securing loading bays. Installing an undersized unit becomes a wasted expense. It fails to stop pests or thermal loss effectively. Conversely, an oversized unit burns excess energy. It also creates severely uncomfortable conditions for your dock staff. You must move beyond basic manufacturer dimensions to succeed. It is essential to evaluate the actual aerodynamic requirements of your specific loading dock or bay doors. Proper evaluation prevents operational headaches down the line. Securing a tight seal requires precision and an understanding of facility airflow. This guide reveals how to calculate exact sizing metrics for your facility. We explore how to account for hidden environmental variables like negative pressure. You will also learn how to evaluate commercial units to achieve verifiable energy savings and a rapid return on investment.
Velocity Over Width: Door height determines the required cubic feet per minute (CFM) and nozzle velocity; width only determines the physical footprint.
The "Throw" Metric: A reliable warehouse air curtain must maintain a minimum of 400–600 feet per minute (fpm) velocity at the floor level to maintain the seal.
Negative Pressure is the Enemy: Even correctly sized units will fail if the warehouse suffers from severe negative air pressure; building pressure must be balanced first.
AMCA Certification: Only shortlist units with Air Movement and Control Association (AMCA) certified performance data to avoid exaggerated marketing claims.
Open bay doors are often the largest source of energy loss in any industrial facility, acting as a massive vacuum that sucks out conditioned air and draws in exterior elements. Every minute a loading dock remains open without a proper thermal barrier, the facility's HVAC system works overtime to compensate for the massive influx of unconditioned ambient air. This continuous cycle not only skyrockets monthly utility bills but also places undue wear and tear on expensive heating and cooling equipment, leading to premature mechanical failures and costly maintenance downtime.
Furthermore, the business case for a warehouse air curtain extends far beyond simple temperature control. In industries such as food processing, pharmaceuticals, and precision manufacturing, maintaining a pristine internal environment is not just a preference; it is a strict regulatory requirement. Flying insects, airborne dust, exhaust fumes from idling delivery trucks, and other exterior contaminants can compromise product integrity. A properly sized industrial air door acts as an invisible shield, effectively repelling these infiltrators while allowing for the seamless, unobstructed flow of forklifts, personnel, and pallet jacks.
When calculating the Return on Investment (ROI) for a warehouse air curtain, facility managers must factor in the reduction of energy consumption, the preservation of perishable inventory, decreased HVAC maintenance costs, and the improvement in worker productivity. Employees subjected to freezing drafts in the winter or sweltering humidity in the summer are significantly more prone to fatigue and errors. By maintaining a stable, comfortable climate near the loading bays, companies can drastically reduce turnover rates and boost overall operational efficiency. Ultimately, an AMCA-certified air curtain is not just a building accessory; it is a critical piece of infrastructure that protects the bottom line.

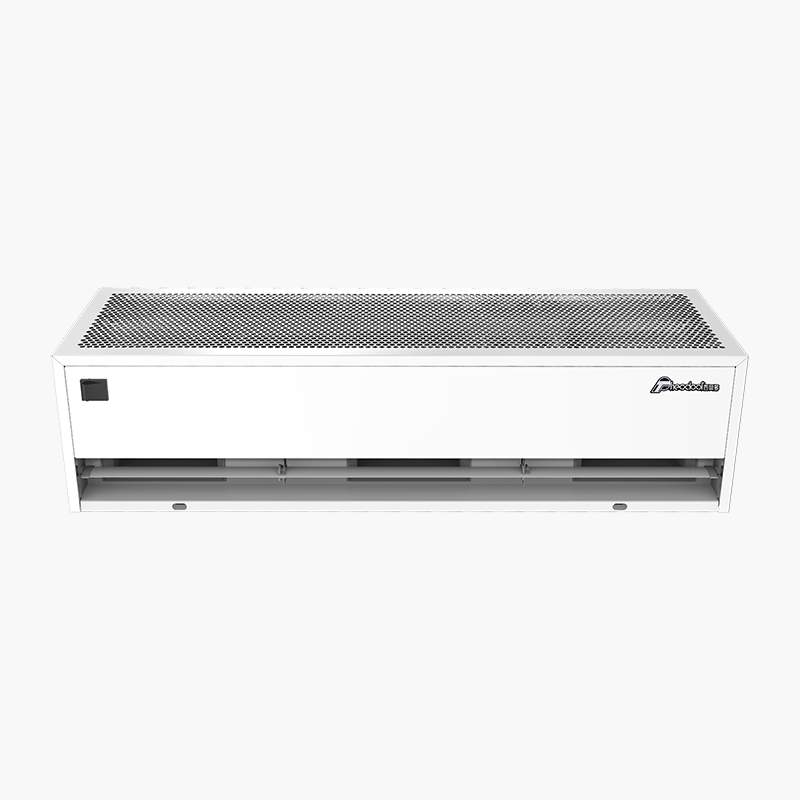

To truly understand how to size and specify a warehouse air curtain, one must first understand the fundamental physics of air movement. An air curtain does not simply blow air downward; it creates a highly engineered, laminar flow of air that stretches from the top of the door opening all the way to the floor. This continuous stream creates a kinetic energy barrier that separates two distinct environments.
Many facility managers make the mistake of looking solely at Cubic Feet per Minute (CFM) when evaluating a warehouse air curtain. While CFM indicates the total volume of air being moved, it does not tell the whole story. The critical metric is actually Velocity, measured in Feet per Minute (FPM). You can have a high-CFM fan that gently pushes a massive amount of air, but without sufficient velocity, that air will never reach the floor to create a seal.
The relationship between volume and velocity is dictated by the unit's nozzle design. A properly engineered discharge nozzle compresses the air, increasing its velocity and directing it in a tight, uniform stream. This is known as the "throw." For a loading dock air curtain to be effective, its throw must be powerful enough to overcome drafts and wind loads, maintaining that crucial 400 to 600 FPM at the floor level. If the velocity drops below 400 FPM before hitting the floor, the barrier will "split," allowing insects, dust, and unconditioned air to easily pass through the lower section of the bay door.
Industrial air doors also rely on fluid dynamics principles to maximize their sealing capabilities. When installing these units, technicians often angle the discharge nozzles slightly outward (typically 10 to 20 degrees) toward the exterior environment. This deliberate deflection serves a vital purpose: it forces the incoming wind and contaminants to crash into the outward-angled air stream. The resulting collision neutralizes the incoming draft, pushing the exterior air back outside while the interior air remains safely inside. If the nozzle is pointed straight down or inward, exterior drafts can easily overpower the air curtain and blow the barrier directly into the warehouse.
Proper sizing is the most critical factor in a successful warehouse air curtain installation. Guesswork will inevitably lead to failure. Follow this precise methodology to ensure you select the correct unit for your loading bays.
The width of the air curtain should always exceed the width of the door opening. A common mistake is ordering an 8-foot unit for an exactly 8-foot door. Because the air stream naturally tapers slightly as it travels downward, a unit that perfectly matches the door width will leave vulnerable gaps at the bottom corners. To guarantee a full seal, the warehouse air curtain should extend at least 2 to 4 inches past both sides of the door opening. If you have a 10-foot (120-inch) wide loading dock door, you should look for a unit that is at least 124 to 128 inches wide. For unusually wide openings, multiple units can be mounted side-by-side. When doing this, ensure there are no gaps between the mounting brackets, creating one continuous wall of air.
The height of the door is the primary factor that dictates the required motor size, fan horsepower, and overall velocity output. Measure from the finished floor to the exact point where the bottom of the air curtain will be mounted. Do not measure just the door opening if the unit needs to be mounted two feet above the header due to clearance issues. If your total mounting height is 12 feet, you must select an industrial air door specifically rated for a 12-foot throw. Buying an air curtain rated for a 10-foot door and installing it at 12 feet will result in a weak, ineffective stream of air at the floor level, rendering the investment virtually useless.
Not all loading bays are created equal. A dock facing a sheltered alleyway requires a vastly different air curtain than a dock facing an open field with heavy prevailing winds. Standard warehouse air curtains are designed to withstand wind loads of up to 5 miles per hour. If your facility experiences higher wind gusts, you must upgrade to heavy-duty or extra-heavy-duty industrial models equipped with higher-horsepower motors. When evaluating the site, consider the building's geographical location, the orientation of the loading dock doors, and the presence of any wind-tunnel effects caused by adjacent structures.
How often are your loading bays open? If a door is only opened once a day for a quick 10-minute delivery, a standard-duty unit may suffice. However, if you operate a busy distribution center where bay doors are left open for hours at a time while multiple trucks are loaded and unloaded, you need an air curtain built for continuous, rigorous operation. Look for units featuring totally enclosed, fan-cooled (TEFC) motors and heavy-duty bearings designed to withstand 24/7 commercial use without overheating.
Even the most powerful, correctly sized warehouse air curtain will fail if it is fighting a losing battle against negative air pressure. This is the silent killer of facility climate control and the number one reason why managers mistakenly believe their air curtains are malfunctioning.
Negative pressure occurs when a building exhausts more air than it takes in. This is incredibly common in manufacturing facilities, welding shops, and warehouses equipped with powerful exhaust fans, roof ventilators, or dust collection systems. When these systems pull air out of the building without an adequate supply of fresh makeup air, the building essentially becomes a giant vacuum. The indoor atmospheric pressure drops below the outdoor atmospheric pressure.
When negative pressure is present, nature seeks to balance the pressure differential by pulling air into the building through the path of least resistance—which is usually your open loading dock doors. If the negative pressure is severe enough, the vacuum effect will literally suck the air curtain's stream inward, breaking the protective seal. Instead of hitting the floor and creating a barrier, the high-velocity air is dragged horizontally into the warehouse, bringing bugs, dust, and freezing exterior air right along with it.
Before installing a warehouse air curtain, conduct a simple pressure test. Open a standard man-door slightly. If the door is forcefully pulled out of your hand and slams shut, or if you feel a strong rush of wind pulling inward, you have a negative pressure problem. You must balance the building's HVAC system before investing in an air curtain. This usually involves installing Make-Up Air Units (MAUs) that pump fresh air into the facility to replace the air being exhausted. Only when the building pressure is neutral (or slightly positive) can an air curtain perform to its maximum engineering specifications.
The industrial climate control market is flooded with varying qualities of equipment. To ensure long-term reliability and true energy savings, you must look closely at the internal components and the verified performance data of the units you are considering.
The Air Movement and Control Association (AMCA) is an independent, international, not-for-profit organization that develops, establishes, and dictates standards for HVAC equipment. Unscrupulous manufacturers often exaggerate their CFM and velocity ratings, testing their units under unrealistic laboratory conditions without the restrictive nozzles in place. When you purchase an AMCA-certified warehouse air curtain, you are buying a product that has undergone rigorous third-party testing. The AMCA seal guarantees that the unit will perform exactly as the spec sheet claims under real-world conditions. Specifically, look for units rated in accordance with AMCA Standard 220, which is the specific testing protocol for air curtains.
Historically, industrial air doors utilized Permanent Split Capacitor (PSC) motors. While durable, PSC motors are energy-intensive and only operate at fixed speeds. Today, leading manufacturers offer Electronically Commutated Motors (ECM). ECMs are highly advanced, programmable, brushless DC motors. They run significantly cooler, last longer, and can reduce the air curtain's energy consumption by up to 50% compared to traditional PSC motors. Furthermore, ECMs allow for infinite variable speed control, meaning facility managers can perfectly dial in the velocity to match seasonal wind conditions, rather than being stuck with rigid "High/Medium/Low" settings.
For warehouses located in cold northern climates, unheated air curtains may not be sufficient. While an unheated unit stops the wind, blowing high-velocity ambient air onto dock workers during the winter can create an uncomfortable wind-chill effect. Heated warehouse air curtains solve this problem while supplementing the building's primary heating system. There are three main types of heated units:
Electric Heated: The most common and easiest to install. Electric coils heat the air stream as it exits the nozzle. Ideal for facilities without existing boiler infrastructure.
Hot Water/Steam Heated: Utilizes coils connected to the building's central boiler system. These are incredibly efficient to operate but require more complex plumbing during installation.
Direct/Indirect Gas Fired: Often used for exceptionally large, extra-heavy-duty industrial air doors where massive amounts of heat are required to temper the incoming air at massive loading bays.
A flawless warehouse air curtain installation requires more than just bolting the unit to the wall. The integration of the unit into the daily workflow of the loading dock is what guarantees consistent energy savings and ease of use.
The intake grille of the air curtain must have unrestricted access to the surrounding ambient air. If the unit is mounted flush against the ceiling or crammed tightly between overhead door tracks, it will be starved of air. This "choking" effect reduces the CFM output, creates excessive noise, and causes the motors to overheat prematurely. Always adhere strictly to the manufacturer's required clearance dimensions—typically a minimum of 6 to 12 inches of free space above and around the air intake.
An air curtain is only effective if it is turned on when the door is open. Relying on dock workers to manually flip a switch every time a truck arrives is a recipe for wasted energy and human error. Every industrial installation must include an automatic door switch. These heavy-duty limit switches (often plunger-style or magnetic reed switches) are mounted directly to the door track. The moment the loading bay door begins to roll up, the switch engages the air curtain. When the door closes, the switch powers the unit down. For units with massive motors, a time-delay relay is highly recommended. This keeps the air curtain running for 30 to 60 seconds after the door closes, preventing the motors from suffering damaging "short cycling" if the door is opened and closed rapidly.
Because loading bays are often exposed to harsh elements, dust, and sometimes wash-down conditions, the electrical control panels must be appropriately rated. Standard NEMA 1 enclosures are only suitable for clean, dry, indoor environments. For most warehouse air curtain installations, a NEMA 12 (dust-tight and drip-tight) or NEMA 4/4X (watertight and corrosion-resistant) control panel is absolutely essential to protect the sensitive electrical relays and motor starters from premature failure.
Once your correctly sized, AMCA-certified warehouse air curtain is installed and seamlessly integrated with your dock doors, it requires regular maintenance to sustain its aerodynamic performance and high ROI. Neglecting maintenance will lead to a gradual reduction in airflow, eventually compromising the thermal barrier.
Not all industrial air doors feature filters, but for those that do, filter maintenance is the single most important upkeep task. A clogged intake filter severely restricts airflow, drastically reducing the nozzle velocity and destroying the floor-level seal. In a dusty warehouse environment, filters should be inspected monthly and washed or replaced quarterly.
For units without filters, the blower wheels (squirrel cages) will eventually accumulate dust, grease, and industrial grime. This buildup alters the aerodynamics of the fan blades, making them heavier and less efficient. Annually, facility maintenance teams should lock out the power, remove the access panels, and carefully vacuum or blow out the blower wheels. Additionally, ensure the discharge nozzles are completely free of debris or accidental damage caused by forklift masts, as even a small dent in the nozzle can disrupt the laminar flow of the air stream.
A proactive warehouse manager adjusts the air curtain based on the season. During the height of summer, when pest control is the primary objective, adjusting the nozzle slightly further outward creates a more aggressive barrier against flying insects. In the dead of winter, when retaining heat is the primary goal, adjusting the nozzle slightly inward (while still maintaining a slight outward bias against the wind) optimizes thermal retention. These minor, seasonal tweaks ensure the unit is always performing exactly as needed for the current environmental challenges.
Securing your loading bays with a high-performance warehouse air curtain is one of the most effective strategies for reducing energy costs, complying with sanitation regulations, and drastically improving the working conditions for your staff. By prioritizing velocity and throw over simple CFM, rigidly adhering to sizing protocols, mitigating negative building pressure, and insisting on AMCA-certified equipment, you transform your bay doors from massive energy liabilities into secure, highly efficient operational assets. Take the time to evaluate your unique environmental wind loads and door operation frequencies, and you will secure a climate control solution that delivers a rapid return on investment and decades of reliable service.
