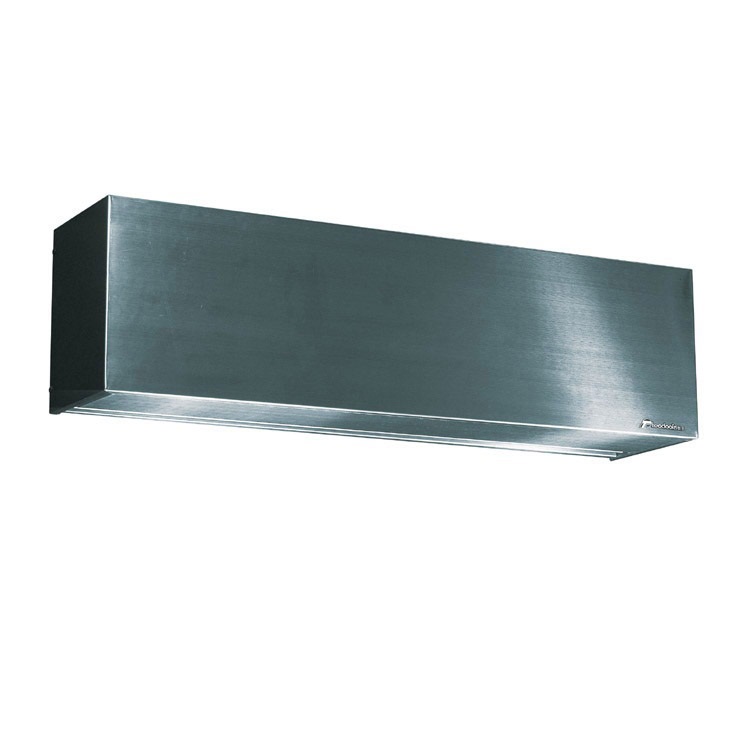

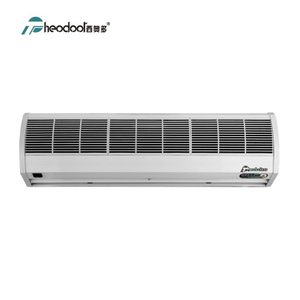

Stainless steel (304) covers, stronger and rust-proof, easy clean;

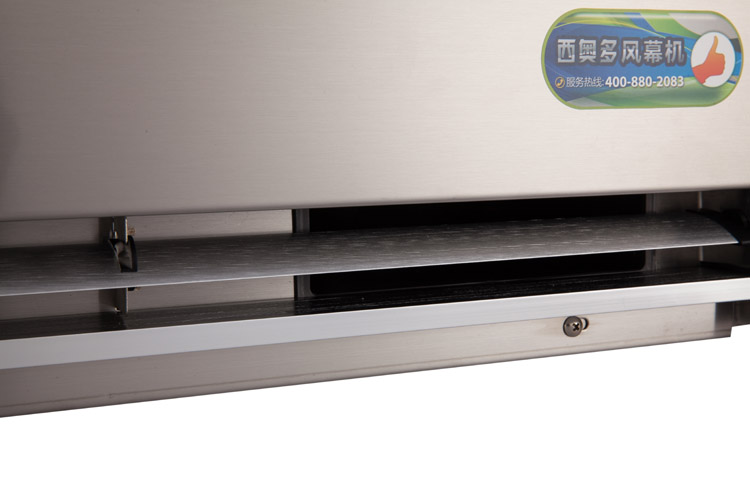

Air inlet from top design, with special air deflector design and air direction is adjustable. Selectable high and lower air velocity controlled by remote control or key switch.

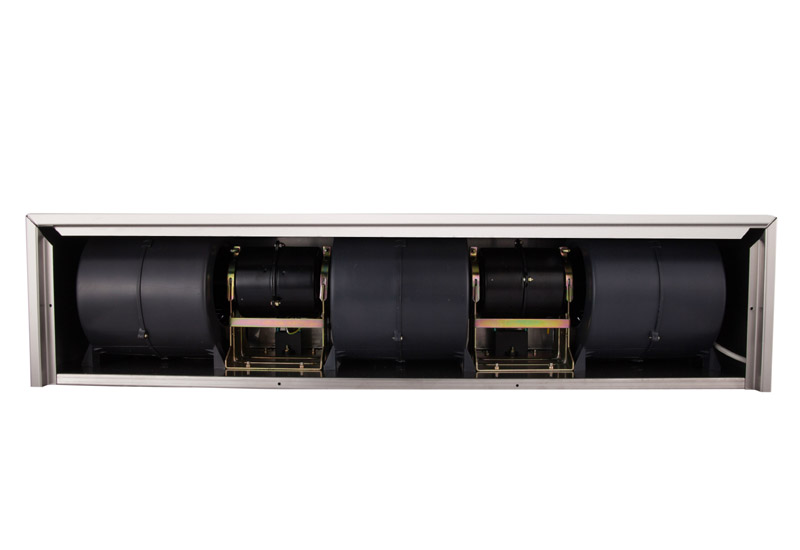

Low noise centrifugal turbine fan, high velocity motor and apply quality bearing. Create powerful air pressure and durable operation.

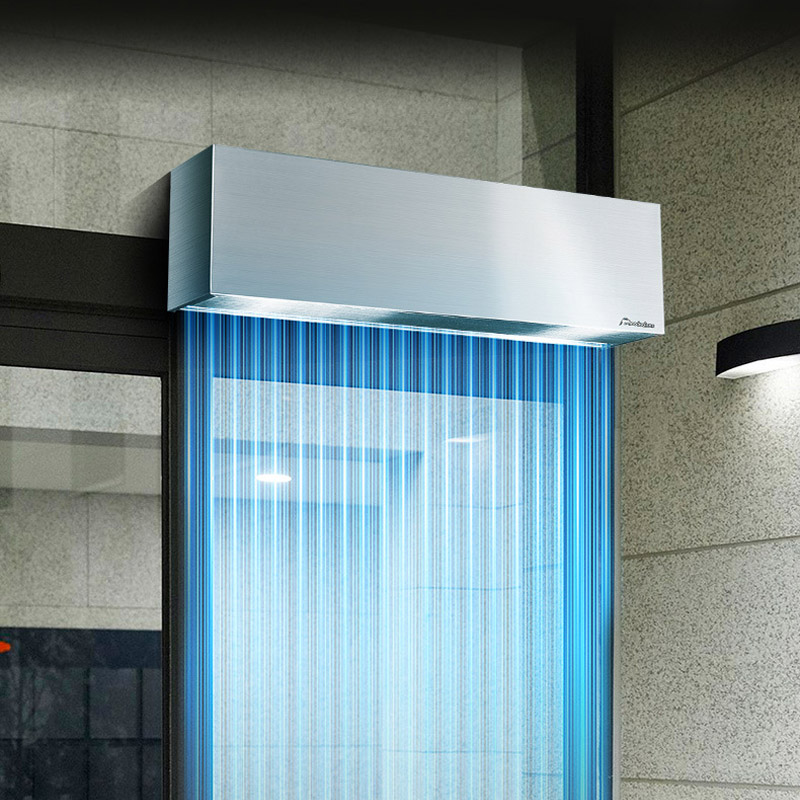

Application: for waiting rooms, food factories, hotel kitchens and bakeries etc;
Mounting height: 3-4M
TECH SPECS

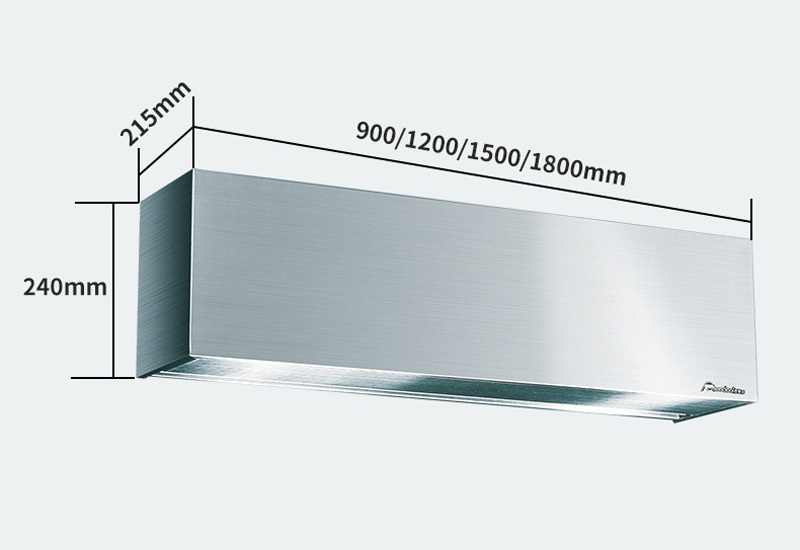

Model | Voltage V/ HZ | Input power (W) | Air Volume (m3/h) | Air Speed (m/s) | Noise (db) | Net Weight (Kg) | Size (mm) | ||||
Hi | Low | Hi | Low | H | L | Hi | Lo | ||||
FM-3509S-L | 220~ 240 /50 | 230 | 200 | 1100 | 900 | 16 | 13 | <52 | <49 | 14 | 900x215x240 |
FM-3510S-L | 250 | 220 | 1200 | 1000 | <52 | <49 | 15 | 1000 x215x240 | |||
FM-3512S-L | 290 | 260 | 1500 | 1200 | <53 | <50 | 18.5 | 1200 x215x240 | |||
FM-3515S-L | 380 | 350 | 1900 | 1500 | <55 | <52 | 25 | 1500 x215x240 | |||
FM-3518S-L | 450 | 420 | 2200 | 1800 | <57 | <54 | 30 | 1800 x215x240 | |||
FM-4009S-L | 220~ 240 /50 | 300 | 270 | 1400 | 1000 | 20 | 16 | <57 | <54 | 14 | 900 x215x240 |
FM-4010S-L | 320 | 290 | 1550 | 1100 | <57 | <54 | 15 | 1000 x215x240 | |||
FM-4012S-L | 400 | 370 | 1900 | 1500 | <58 | <55 | 18.5 | 1200 x215x240 | |||
FM-4015S-L | 500 | 470 | 2300 | 1900 | <61 | <58 | 25 | 1500 x215x240 | |||
FM-4018S-L | 600 | 570 | 2850 | 2250 | <63 | <61 | 28 | 1800 x215x240 | |||
OPTIONAL FUNCTIONS OF THEODOOR AIR CURTAIN:
Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.
The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.
3. AUTO ON/OFF DOOR SWITCH
Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.
Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and energy-saving.
