| Quantity: | |
|---|---|
Suitable for commercial plazas, office buildings. factories, garages, transportation hubs,environmental sanitation stations, and similar venues.
EXCEPTIONAL STABILITY

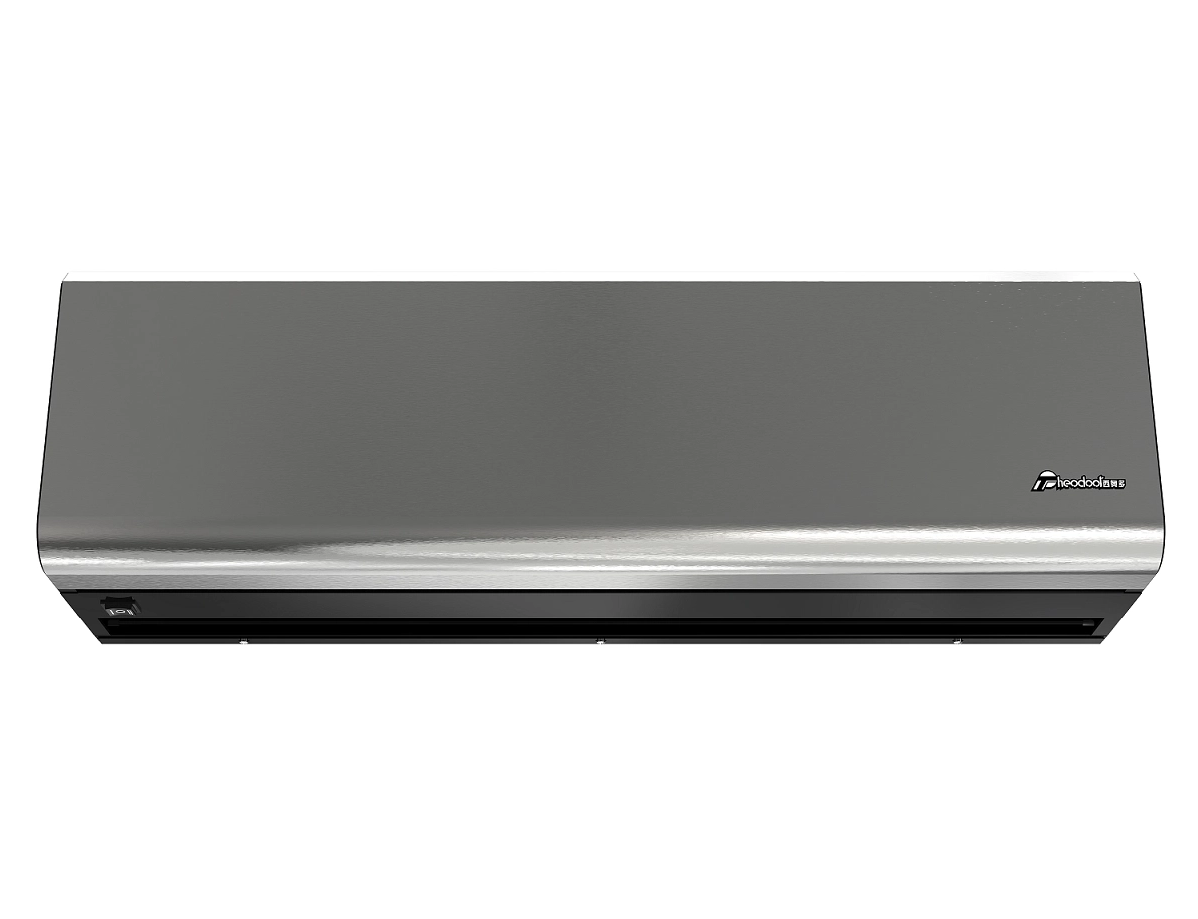

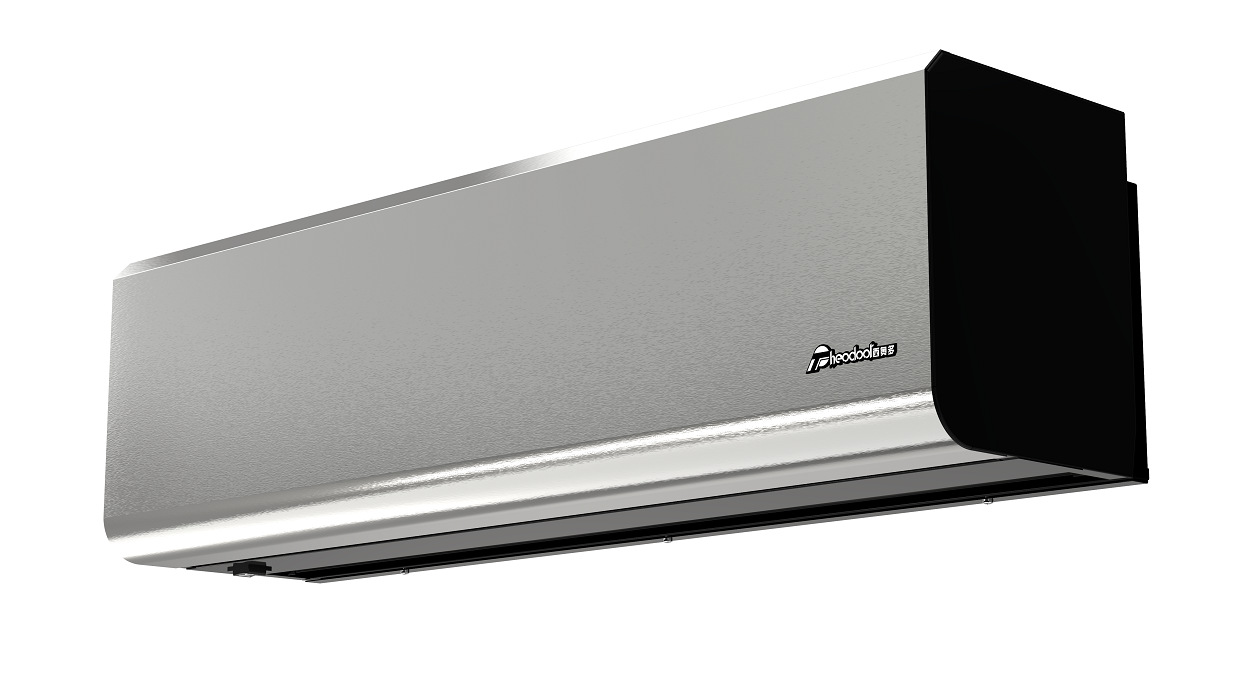

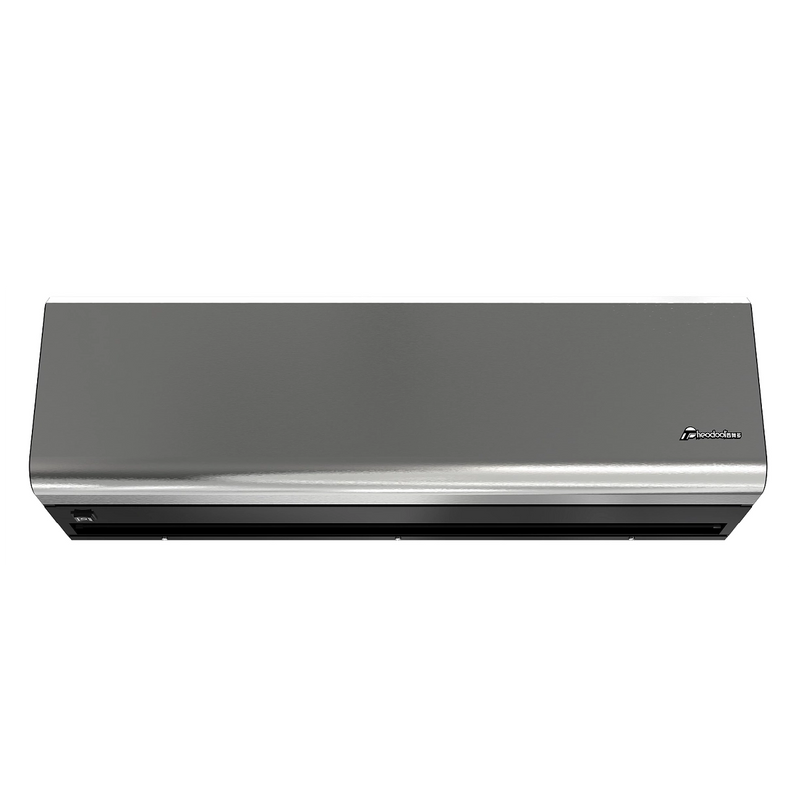

Constructed with stainless steel panels for durability and easy cleaning. Features a hard-link motor mounting design for enhanced stability and long-term reliability.
POWERFUL CENTRIFUGAL AIRFLOW

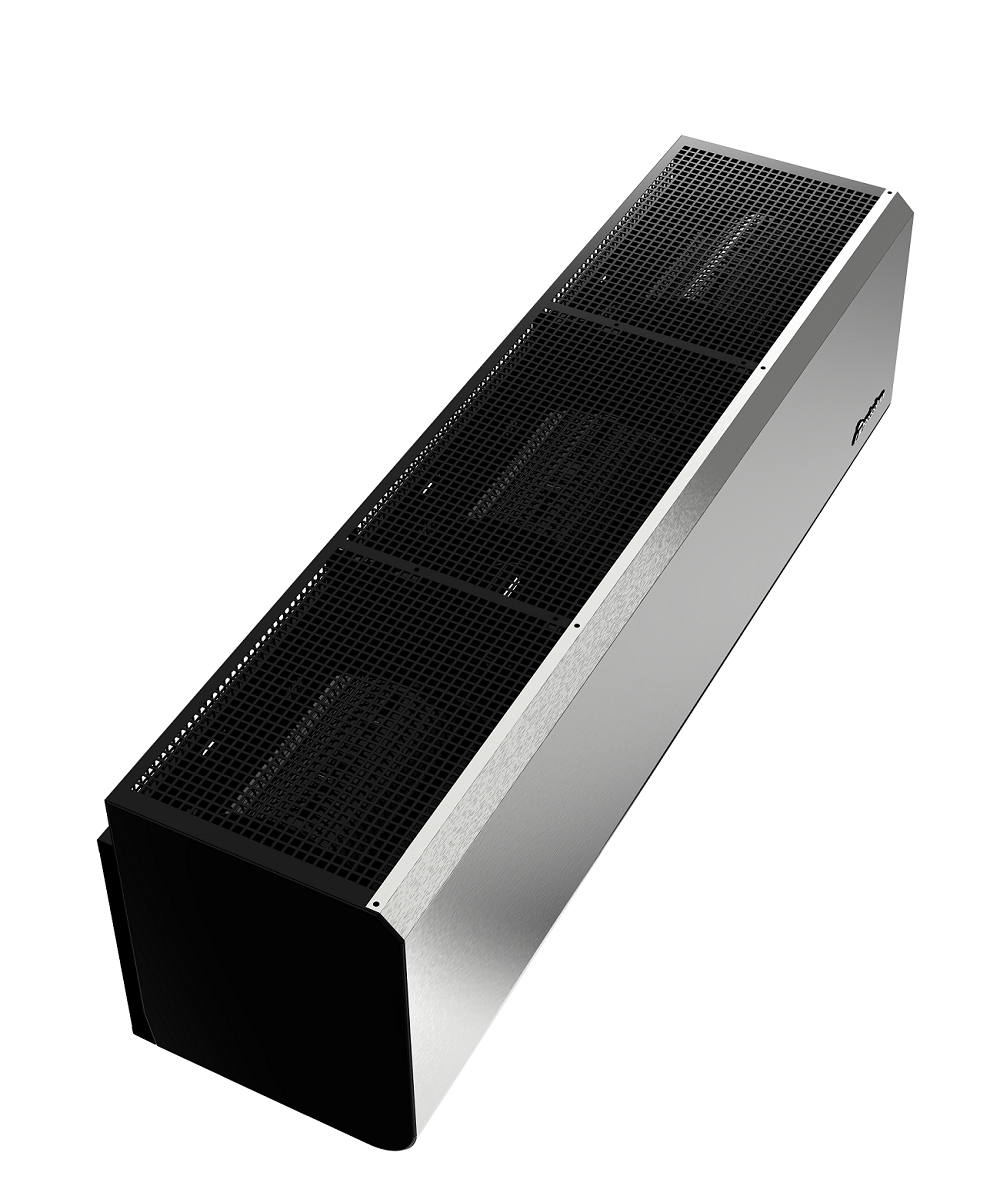

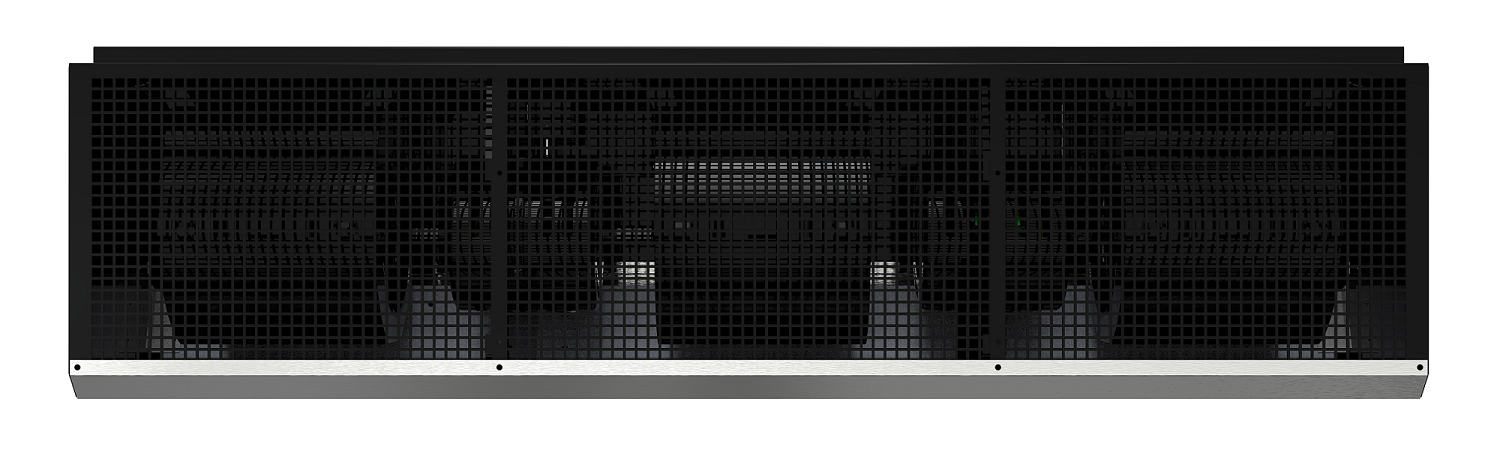

Designed with a centrifugal fan and top-inlet, bottom-outlet airflow structure,this air curtain provides wider coverage and higher airflow density. With large air volume and high air speed, it delivers an excellent door-sealing effect.
SAFE AND EFFICIENT
Equipped with a sealed motor structure to prevent ingress of dust and moisture from the environment, ensuring safer operation.
EASY CONTROL
Optional with button switch or remote control with high and low speed control.
Model | Voltage (V/ HZ） | Input power (W) | Air Volume (m3/h) | Air Speed (m/s) | Noise (dB) | Net W. (Kg) | Size (mm) |
FM-5009S3 | 220~ 240 /50 | 580 | 2000 | 22 | 61 | 11 | 920x244 x268 |
FM-5010S3 | 600 | 2200 | 22 | 61 | 12 | 1000 x244 x268 | |
FM-5012S3 | 660 | 2700 | 22 | 63 | 13 | 1200 x244 x268 | |
FM-5015S3 | 900 | 3400 | 22 | 64 | 17.5 | 1530 x244 x268 | |
FM-5018S3 | 960 | 4000 | 22 | 66 | 21 | 1800 x244 x268 | |
FM-5020S3 | 1000 | 4800 | 22 | 66 | 24.5 | 2000 x244 x268 |
Making life more comfortable inside
Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.
Prevent the loss of cool or warm air whilst economizing on electricity.
Efficient dust and insect-proofing..
Protect against smoke and noxious fumes.
Accelerate air circulation
Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.
Dust-proof, insect prevention
Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.
Isolate the smell
Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.
Energy saving
The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.
Comfortable heating
Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.
Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.
The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.
Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.
Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and energy-saving.
Guangzhou Theodoor technology Co., Ltd. is a professional high technology enterprise. focus on R&D and manufacture energy saving products. such as Air Curtain, Heating fan Conditioner and Thermal Radiant Heater etc. As one of the star brands in Air Curtain industry Theodoor produces a variety of Air Curtains and exports to more than 80 countries and regions.

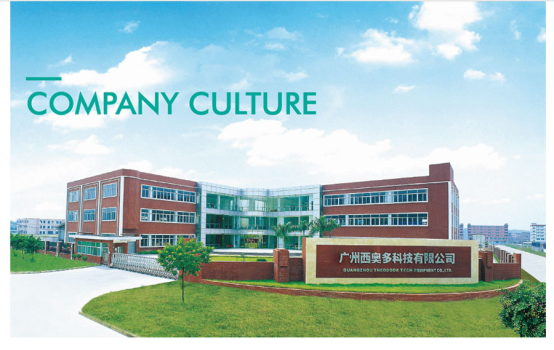

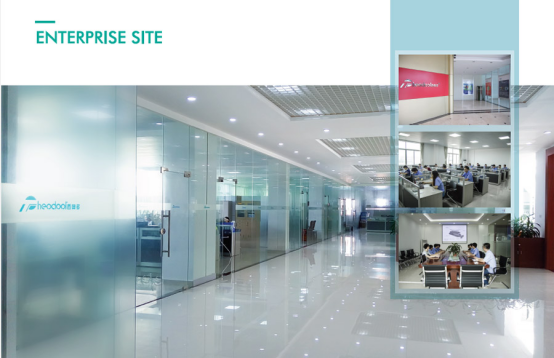

Founded in 2002, Theodoor is located in Guangzhou innovation and development new area Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. we have modern production workshop,applying the most advanced industrial equipment and detecting instruments to provide products manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.
With consecutive creation and innovation. Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What's more, Theodcor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL SASO INMETRO and SAA certifications etc.
Theodoor has acquired "High-tech Enterprises", "Famous Brand" "air Curtain Star Brand", "Guangzhou Municipal Government Key Marketing Products"," Top-ten Famous Brand", "Top-ten Advantages of Enterprises", "The Most Investment Value Award", "Apply International Standard Product Standards Certificate" and "Standard Innovation Working Award" honors, and has won the buildings of matching projects of Guangzhou Asian Games, Beijing Olympic, Shanghai World Expo, Wanda Plaza and Xian World Horticulture Expo etc". Innovation, Creation, Share, Win-Win"! Theodoor is committed to create a better green life for the global customers.
