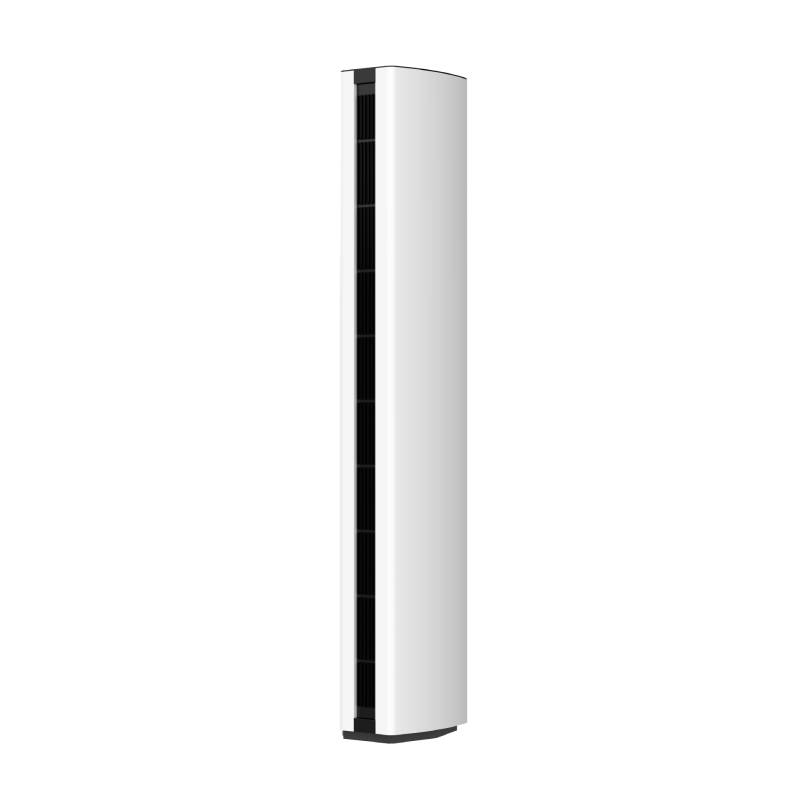

STYLISH APPEARANCE
Featuring an all-metal luxury exterior with a refined and compact design to meet aesthetic needs of various locations. The thickened metal casing is finished with painted anti-rust treatment, offering corrosion resistance and easy cleaning.
POWERFUL AIRFLOW
Equipped with a centrifugal fan and a high-speed pure copper motor, delivering high airflow and reliable performance. Experiment test continuous operation 8,000 hours without failure.
SUPERIOR PERFORMANCE
Incorporates a self-developed hard-link motor structure for more stable transmission and optimized air duct design, ensuring overall air outlet delivery and efficient air barrier.
CUSTOMIZABLE OPTIONS
The product can be customized according to the door height. Its compact structure makes it suitable for various commercial and special installation scenes. Appearance customization is available, with options including black,white and stainless steel casings.
Model | Length (mm) | Voltage (v~) | Frequency (Hz) | Power (W) | Air velocity (m/s) | Air Volume (m³/h) | Noise (db) | Net Weight (Kg) | Unit size (mm) |
FM-LC2000M | 2000 | 220 | 50 | 350 | 12 | 4500 | ≤57 | 31 | 277x256x2000 |
FM-LC2500M | 2500 | 220 | 50 | 500 | 12 | 5600 | ≤59 | 38 | 277x256x2500 |
FM-LC3000M | 3000 | 220 | 50 | 550 | 12 | 6800 | ≤61 | 45 | 277x256x3000 |

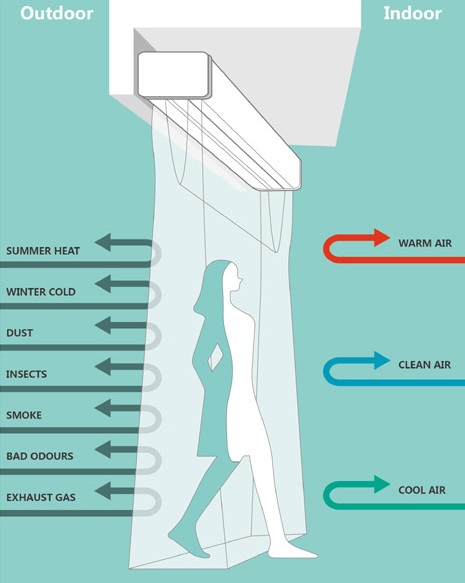

Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.
Powerful isolation, Efficient and energy saving
Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.
Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, keeping clean indoor environment.
Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.
The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.
Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.
Powerful engine, stronger performance
Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.
Perfect unity of equipment and architecture
Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.
Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and eneygy-saving.
Intelligence
Inteligent induction design can start automatically when the door opened and shut down automatically after the door is closed.
Energy-saving
Timely opening, reduce energy consumption, energy saving.
Comfort
Automatic control, practical and convenience, more humanize.
